Summary

ZeusLite is a REST API for a simple warehouse system.

Terminal client applications communicate with warehouse system using REST service calls.

You can download the REST API source from http://zeuslite.codeplex.com

How does it work

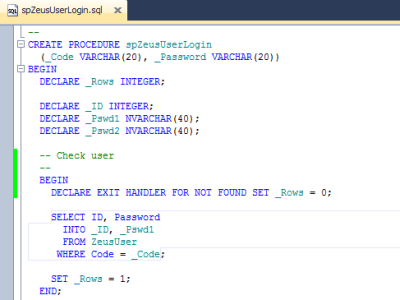

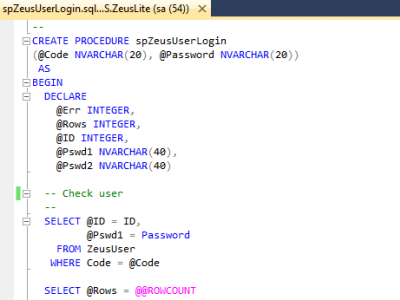

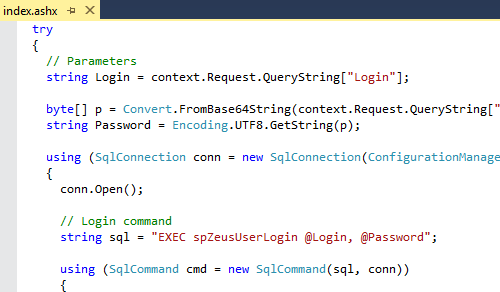

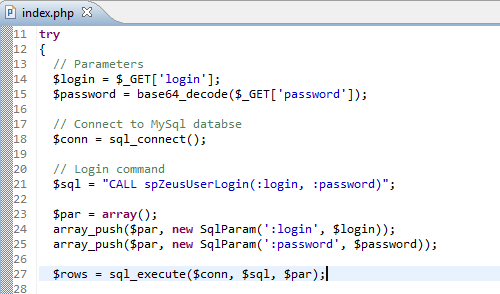

Application sends HTTP GET requests, the API calls stored procedures and send back the result in JSON format.

Device		ZeusLite REST API	Database
	GET

API functions in version 1.0

Settings	Loading in	Loading out	Inventory
Login	Package receiving	Picking list	Package Inventory
	Package storing	Change picked quantity
	Refill list	Picking close
	Unstored List
	Package information

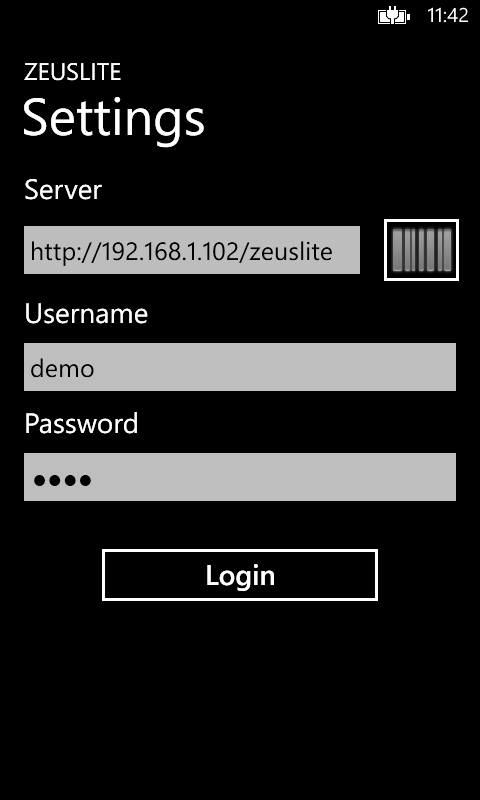

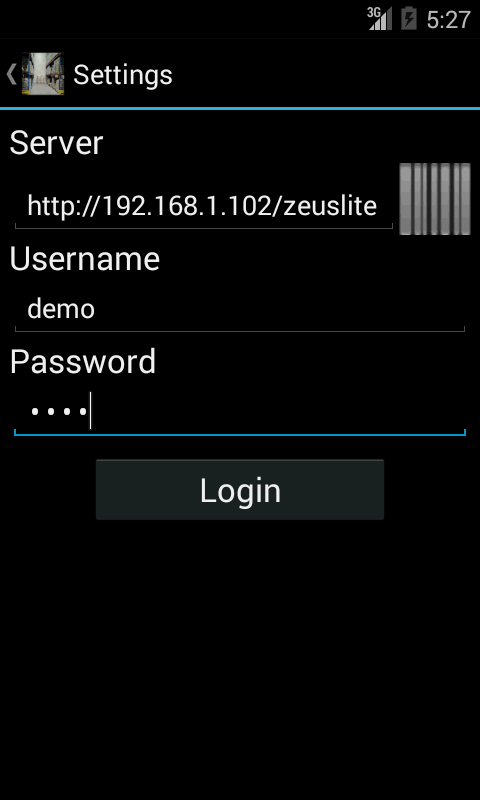

Login

/REST/v1/user/?login=demo&password=MTIzNA==

	Name	Description
	login	UserID of warehouse employee
	password	base64 coded password
	Success	{ "ErrorCode":0, "ErrorText":"", "Result":[ { "ID":"1", "Name":"Name of warehouse employee" } ] }
	Error	{ "ErrorCode":1, "ErrorText":"Something went wrong !", "Result":[] }

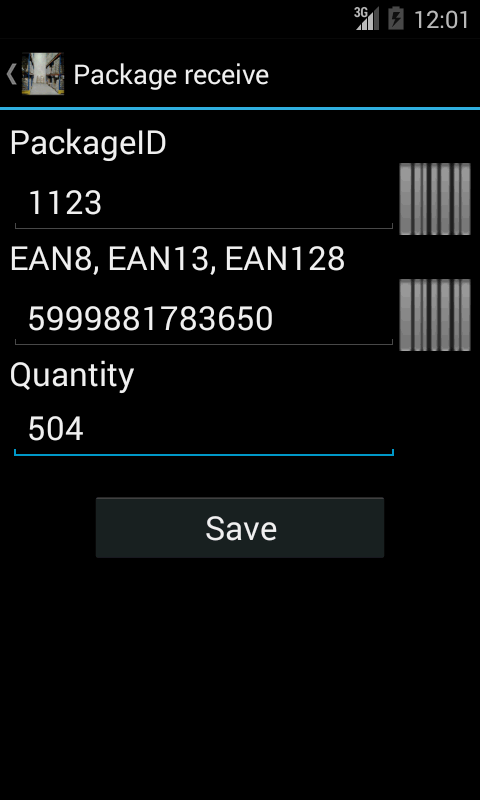

Package receiving

/REST/v1/PackageReceive/?token=1&code=1234&ean=020871067913825715160522370063&quantity=63

	Name	Description
	token	User ID or access token
	code	Package or palette ID
	ean	ean8, ean13, ean128, upc or something
	quantity	quantity of product
	Success	{ "ErrorCode": 0, "ErrorText": "", "Result": [ { "Code": "1234", "ArticleCode": "300", "ArticleName": "Oven Crinkle 12x750g", "Expired": "2016.05.22", "Quantity": "63.00", "LocationCode": "", "UnitCode": "Carton" } ] }
	Error	{ "ErrorCode":1, "ErrorText":"Something went wrong !", "Result":[] }

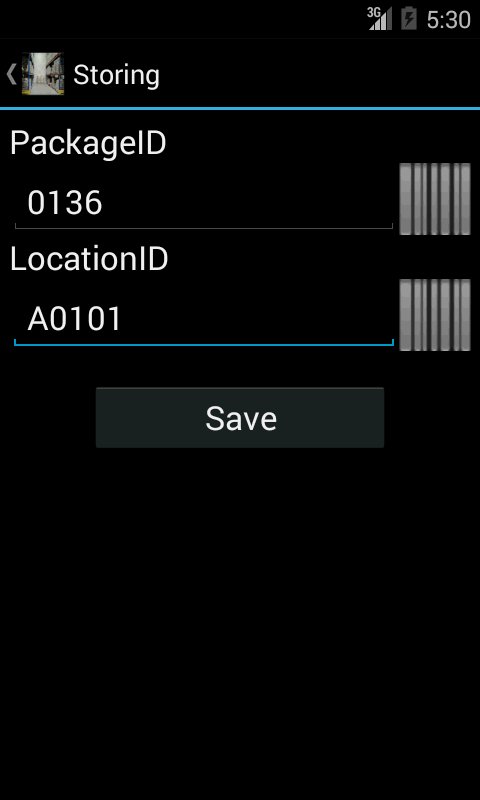

Package storing

/REST/v1/PackageStore/?token=1&code=1026&location=A0101

	Name	Description
	token	User ID or access token
	code	Package or palette ID
	location	Location ID
	Success	{ "ErrorCode": 0, "ErrorText": "", "Result": [ { "Code": "0136", "ArticleCode": "200100", "ArticleName": "Green peas", "Expired": "2015.12.31", "Quantity": "660.00", "LocationCode": "A0101", "UnitCode": "Kg" } ] }
	Error	{ "ErrorCode":1, "ErrorText":"Something went wrong !", "Result":[] }

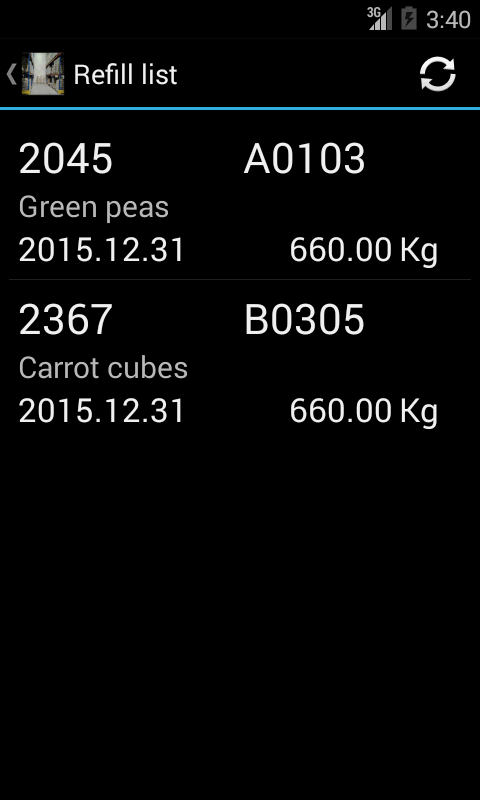

Refill list

/REST/v1/PackageRefill/?token=1

	Name	Description
	token	User ID or access token
	Success	{ "ErrorCode": 0, "ErrorText": "", "Result": [ { "Code": "2045", "ArticleCode": "200100", "ArticleName": "Green peas", "Expired": "2015.12.31", "Quantity": "660.00", "LocationCode": "A0103", "UnitCode": "Kg" }, { "Code": "2367", "ArticleCode": "100100", "ArticleName": "Carrot cubes", "Expired": "2015.12.31", "Quantity": "660.00", "LocationCode": "B0305", "UnitCode": "Kg" } ] }
	Error	{ "ErrorCode":1, "ErrorText":"Something went wrong !", "Result":[] }

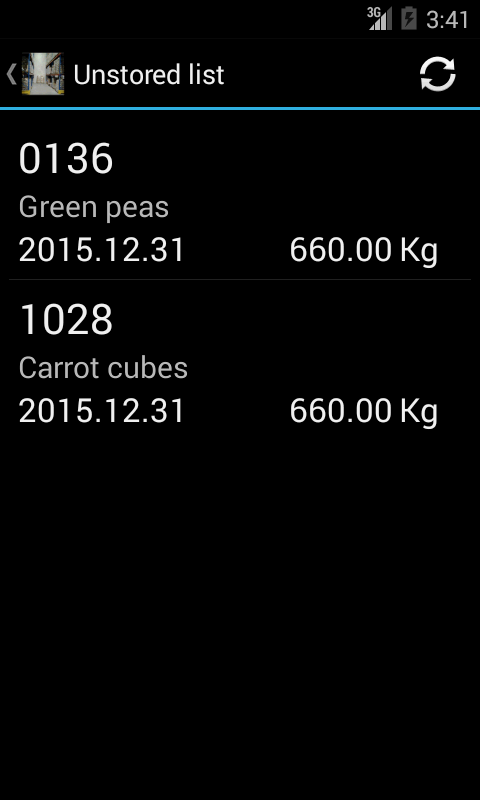

Unstored list

/REST/v1/PackageUnstored/?token=1

	Name	Description
	token	User ID or access token
	Success	{ "ErrorCode": 0, "ErrorText": "", "Result": [ { "Code": "0136", "ArticleCode": "200100", "ArticleName": "Green peas", "Expired": "2015.12.31", "Quantity": "660.00", "LocationCode": "", "UnitCode": "Kg" }, { "Code": "1028", "ArticleCode": "100100", "ArticleName": "Carrot cubes", "Expired": "2015.12.31", "Quantity": "660.00", "LocationCode": "", "UnitCode": "Kg" } ] }
	Error	{ "ErrorCode":1, "ErrorText":"Something went wrong !", "Result":[] }

Package info

/REST/v1/PackageInfo/?token=1&code=2045

	Name	Description
	token	User ID or access token
	code	Package or palette ID
	Success	{ "ErrorCode": 0, "ErrorText": "", "Result": [ { "Code": "2045", "ArticleCode": "200100", "ArticleName": "Green peas", "Expired": "2015.12.31", "Quantity": "660.00", "LocationCode": "A0103", "UnitCode": "Kg" } ] }
	Error	{ "ErrorCode":1, "ErrorText":"Something went wrong !", "Result":[] }

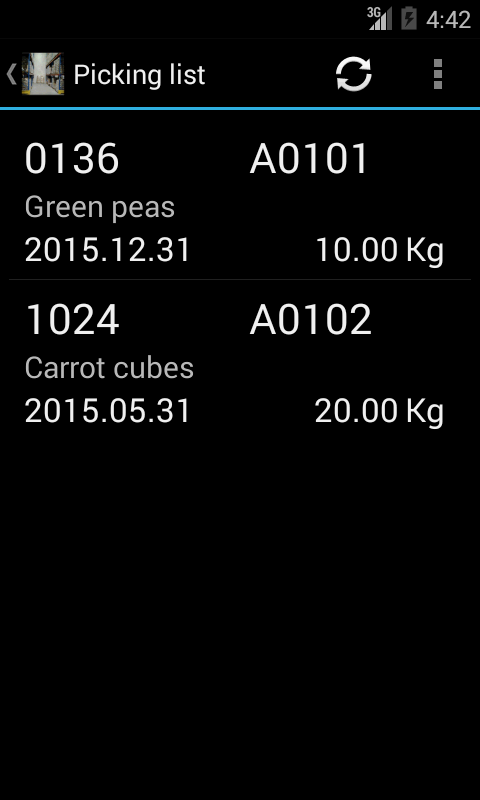

Picking list

/REST/v1/PickingList/?token=1

	Name	Description
	token	User ID or access token
	Success	{ "ErrorCode": 0, "ErrorText": "", "Result": [ { "ID": "2", "PartnerName": "PartnerName", "Items": [ { "ID": "9", "Code": "0136", "ArticleCode": "200100", "ArticleName": "Green peas", "Expired": "2015.12.31", "Quantity": "10.00", "LocationCode": "A0101", "UnitCode": "Kg" }, { "ID": "10", "Code": "1024", "ArticleCode": "100100", "ArticleName": "Carrot cubes", "Expired": "2015.05.31", "Quantity": "20.00", "LocationCode": "A0102", "UnitCode": "Kg" } ] } ] }
	Error	{ "ErrorCode":1, "ErrorText":"Something went wrong !", "Result":[] }

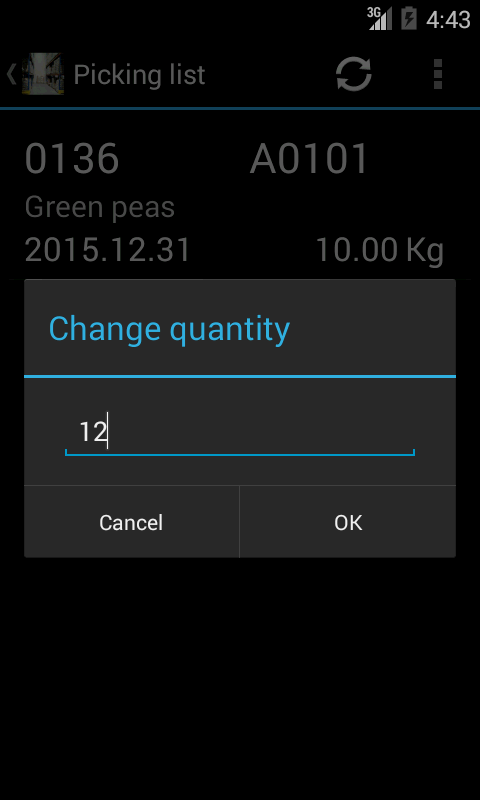

Change picked quantity

/REST/v1/PickingQuantity/?token=1&itemid=9&quantity=12

	Name	Description
	token	User ID or access token
	itemid	Picking item ID
	quantity	Picked quantity
	Success	{ "ErrorCode": 0, "ErrorText": "", "Result": [] }
	Error	{ "ErrorCode":1, "ErrorText":"Something went wrong !", "Result":[] }

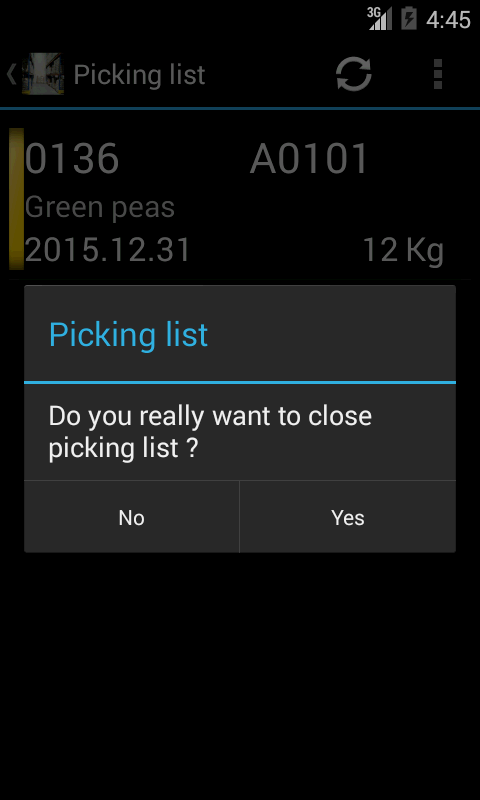

Picking close

/REST/v1/PickingClose/?token=1&id=2

	Name	Description
	token	User ID or access token
	id	Picking list ID
	Success	{ "ErrorCode": 0, "ErrorText": "", "Result": [] }
	Error	{ "ErrorCode":1, "ErrorText":"Something went wrong !", "Result":[] }

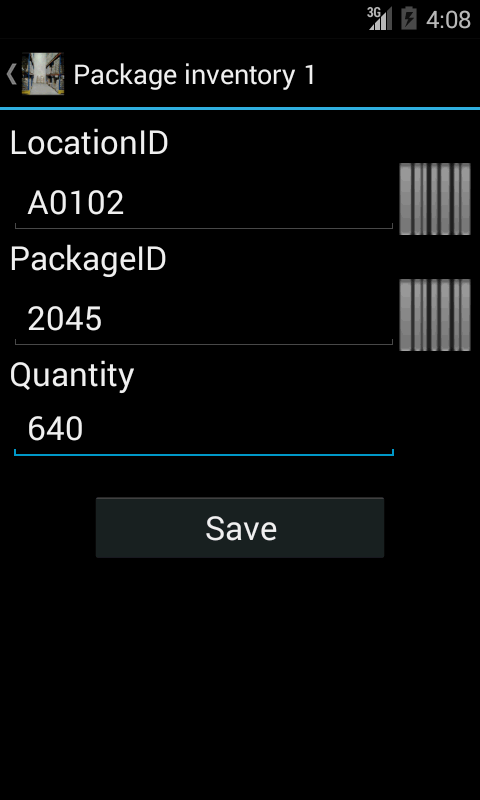

Package inventory

/REST/v1/PackageInventory/?token=1&code=2045&location=A0102&quantity=640&type=1

	Name	Description
	token	User ID or access token
	code	Package or palette ID
	location	Location ID
	quantity	Counted quantity
	type	1 => Inventory team 1 2 => Inventory team 2
	Success	{ "ErrorCode": 0, "ErrorText": "", "Result": [ { "Code": "2045", "ArticleCode": "200100", "ArticleName": "Green peas", "Expired": "2015.12.31", "Quantity": "640.00", "LocationCode": "A0102", "UnitCode": "Kg" } ] }
	Error	{ "ErrorCode":1, "ErrorText":"Something went wrong !", "Result":[] }
